Carbon Foil Bean Stripper 🢂 DLC Boron Hybrid Foils

The mechanical stability of standard MICROMATTER DLC foils can be increased by sandwiching a thin layer of boron between two layers of diamond-like carbon. MICROMATTER DLC-B hybrid foils contain between 5% and 10% boron.

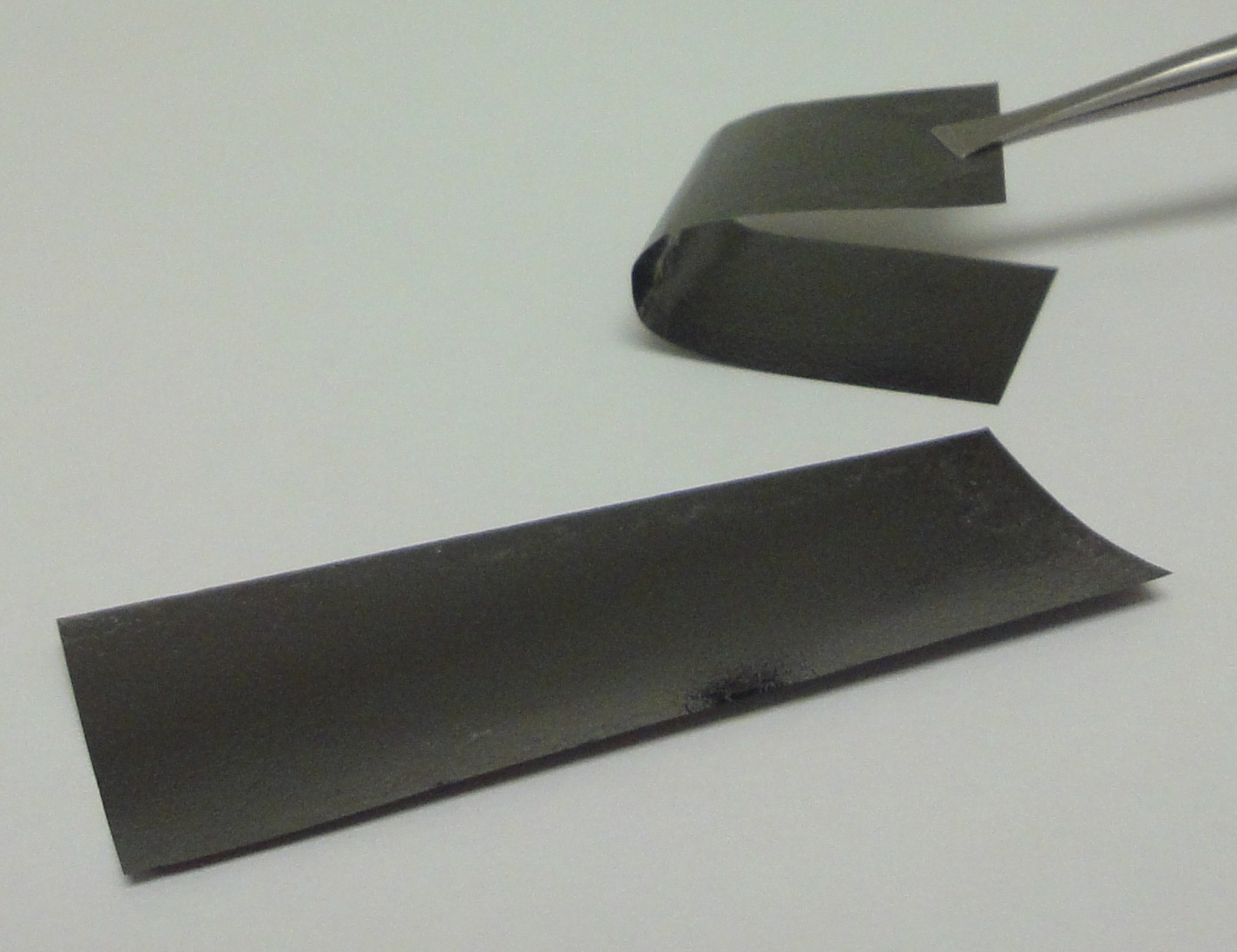

DLC-B foils have remarkable flexibility, higher tensile strength and hardness. In most applications, their lifetime in particle beams is significantly greater than regular DLC foils. DLC-B foils are recommended for applications that require highest mechanical robustness and improved durability under beam conditions.

MICROMATTER DLC-B foils are available in thicknesses between 0.25 µm and 5 µm and in various sizes.


Nominal Size 25x25 (mm)


Part No.

Thickness in
(nm)

Approx Areal
Density(µg/cm2)
DLC-11-0500-S-HYB 500 100
DLC-11-0600-S-HYB 600 120
DLC-11-0800-S-HYB 800 160
DLC-11-1000-S-HYB 1000 200
DLC-11-1250-S-HYB 1250 250
DLC-11-1500-S-HYB 1500 300
DLC-11-1750-S-HYB 1750 350
DLC-11-2000-S-HYB 2000 400
DLC-11-2250-S-HYB 2250 450
DLC-11-2500-S-HYB 2500 500
DLC-11-2750-S-HYB 2750 550
DLC-11-3000-S-HYB 3000 600
DLC-11-3500-S-HYB 3500 700
DLC-11-4000-S-HYB 4000 800
DLC-11-5000-S-HYB 5000 1000


Nominal Size 25x65 (mm)


Part No.

Thickness in
(nm)

Approx Areal
Density(µg/cm2)
DLC-13-0500-S-HYB 500 100
DLC-13-0600-S-HYB 600 120
DLC-13-0800-S-HYB 800 160
DLC-13-1000-S-HYB 1000 200
DLC-13-1250-S-HYB 1250 250
DLC-13-1500-S-HYB 1500 300
DLC-13-1750-S-HYB 1750 350
DLC-13-2000-S-HYB 2000 400
DLC-13-2250-S-HYB 2250 450
DLC-13-2500-S-HYB 2500 500
DLC-13-2750-S-HYB 2750 550
DLC-13-3000-S-HYB 3000 600
DLC-13-3500-S-HYB 3500 700
DLC-13-4000-S-HYB 4000 800
DLC-13-5000-S-HYB 5000 1000


Nominal Size 50x65 (mm)


Part No.

Thickness in
(nm)

Approx Areal
Density(µg/cm2)
DLC-23-0500-S-HYB 500 100
DLC-23-0600-S-HYB 600 120
DLC-23-0800-S-HYB 800 160
DLC-23-1000-S-HYB 1000 200
DLC-23-1250-S-HYB 1250 250
DLC-23-1500-S-HYB 1500 300
DLC-23-1750-S-HYB 1750 350
DLC-23-2000-S-HYB 2000 400
DLC-23-2250-S-HYB 2250 450
DLC-23-2500-S-HYB 2500 500
DLC-23-2750-S-HYB 2750 550
DLC-23-3000-S-HYB 3000 600
DLC-23-3500-S-HYB 3500 700
DLC-23-4000-S-HYB 4000 800
DLC-23-5000-S-HYB 5000 1000


Nominal Size 70x95 (mm)


Part No.

Thickness in
(nm)

Approx Areal
Density(µg/cm2)
DLC-34-1500-S-HYB 1500 300
DLC-34-1750-S-HYB 1750 350
DLC-34-2000-S-HYB 2000 400
DLC-34-2250-S-HYB 2250 450
DLC-34-2500-S-HYB 2500 500
DLC-34-2750-S-HYB 2750 550
DLC-34-3000-S-HYB 3000 600
DLC-34-3500-S-HYB 3500 700
DLC-34-4000-S-HYB 4000 800
DLC-34-5000-S-HYB 5000 1000


Nominal Size 110x140 (mm)


Part No.

Thickness in
(nm)

Approx Areal
Density(µg/cm2)
DLC-46-1500-S-HYB 1500 300
DLC-46-1750-S-HYB 1750 350
DLC-46-2000-S-HYB 2000 400
DLC-46-2250-S-HYB 2250 450
DLC-46-2500-S-HYB 2500 500
DLC-46-2750-S-HYB 2750 550
DLC-46-3000-S-HYB 3000 600
DLC-46-3500-S-HYB 3500 700
DLC-46-4000-S-HYB 4000 800
DLC-46-5000-S-HYB 5000 1000
